14: Changing the Design

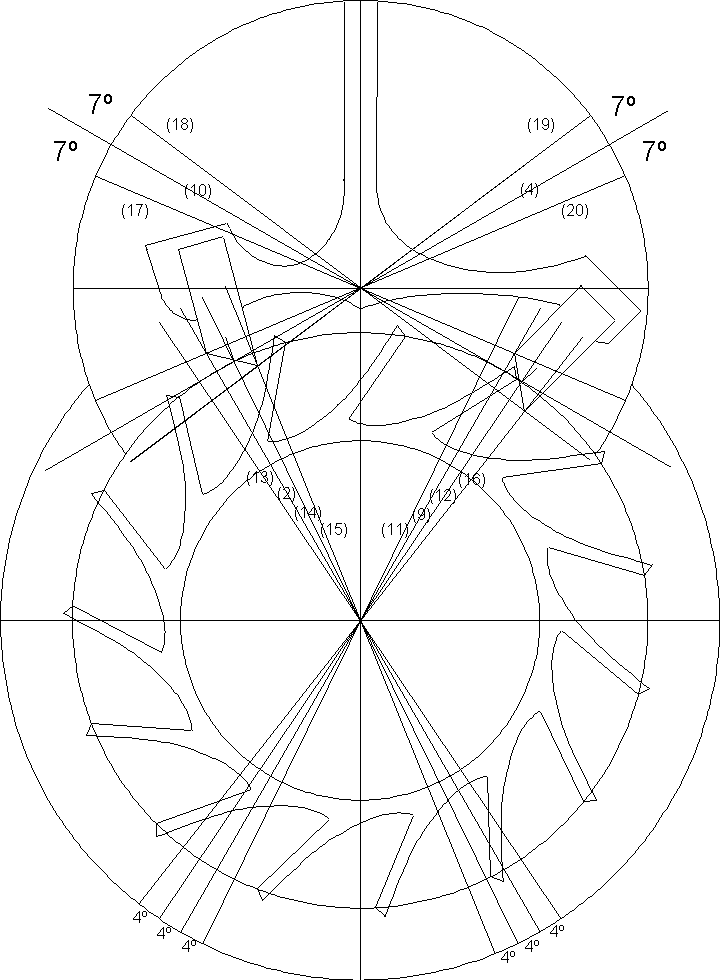

A different approach is required to create different designs, such as the equidistant lock drawing below. Rotate lines (14) and (12) clockwise by 4 to get lines (15) and (16) respectively. Rotate lines (10) and (4) clockwise by 7 to get lines (18) and (20), and counterclockwise to get lines (17) and (19). Draw the entry pallet's impulse face from the point where lines (2) and (20) intersect to the point where lines (15) and (19) intersect. Draw the exit pallet's impulse face from the point where lines (9) and (17) intersect to the point where lines (16) and (18) intersect. Rotate lines (2) and (9) clockwise by 15 to draw the locking faces of the pallets. In order to maintain the action of the pallets as symmetrical as possible (and to keep the impulse face's angle as close to 45 as possible), the lift is reduced slightly to 14 and the impulse angles are no longer at 45, which reduces efficiency, but the lock and drop are the same on both sides and the pallets are not "out of angle." The pallets are no longer identical.



Drawings could be superimposed for comparison, such as this comparison between the equidistant impulse and lock designs. It reveals that, in the equidistant impulse design, the exit pallet's impulse face does not exactly fit between the lines: while the exit pallet is identical to the entry pallet, it is not a mirror image of the entry pallet. The entry pallet does not have a perfect fit either, but the difference is very small and inconsequential. The result of the unequal fit on both sides is that the exit pallet releases the escape tooth a little prematurely, causing the design to be out of angle: the angle on the left side to the drop-lock position is one degree greater than on the right side. This problem is corrected in Chapter 22.

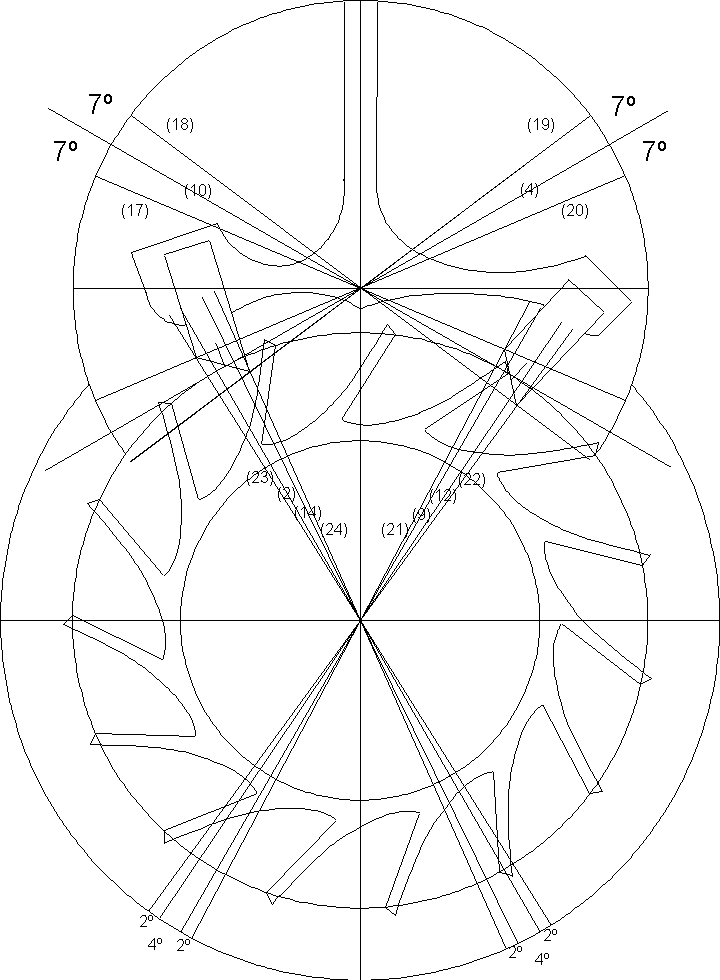

To combine the advantages of equidistant impulse and equidistant lock, watchmakers have designed an escapement half way between the two, called the Semi-Tangental Escapement. Here, the angle between lines (2) and (23) and between lines (9) and (21) is 2, so rotate lines (2) and (9) counterclockwise by 2 to get lines (23) and (21). Rotate lines (12) and (14) clockwise by 2 to get lines (22) and (24). Draw the entry pallet's impulse face from the point where lines (23) and (20) intersect to the point where lines (24) and (19) intersect. Draw the exit pallet's impulse face from the point where lines (21) and (17) intersect to the point where lines (22) and (18) intersect. Rotate lines (23) and (21) clockwise by 15 to draw the locking faces of the pallets.
