Elliott Clock Catalogue 1974

Here is an Elliott Clock Catalogue with price list. Remember that an Omega Speedmaster cost about $320, and a Rolex President cost about $1850 in 1974, so you could take the prices you find in this catalogue and multiply by ten to twenty times, in order to estimate what a comparable Elliott clock would cost in 2024!

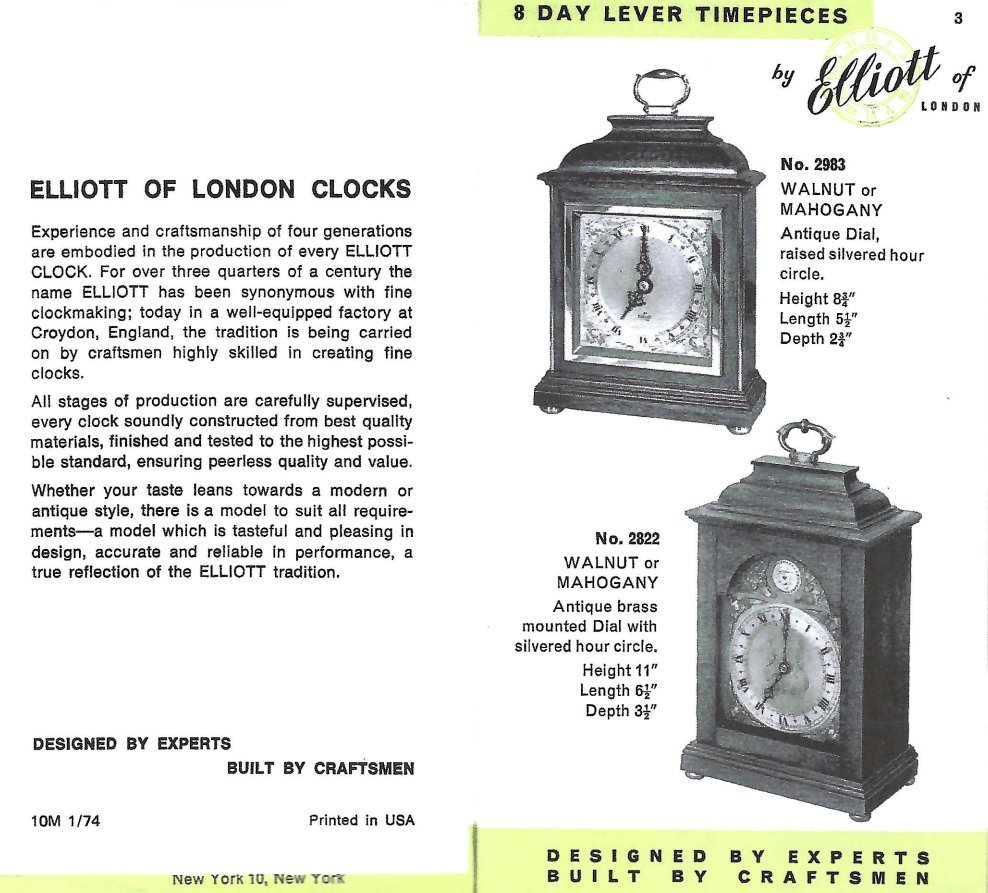

Elliott clocks 2983 and 2822


Elliott clocks 2823 2825 2891 2894

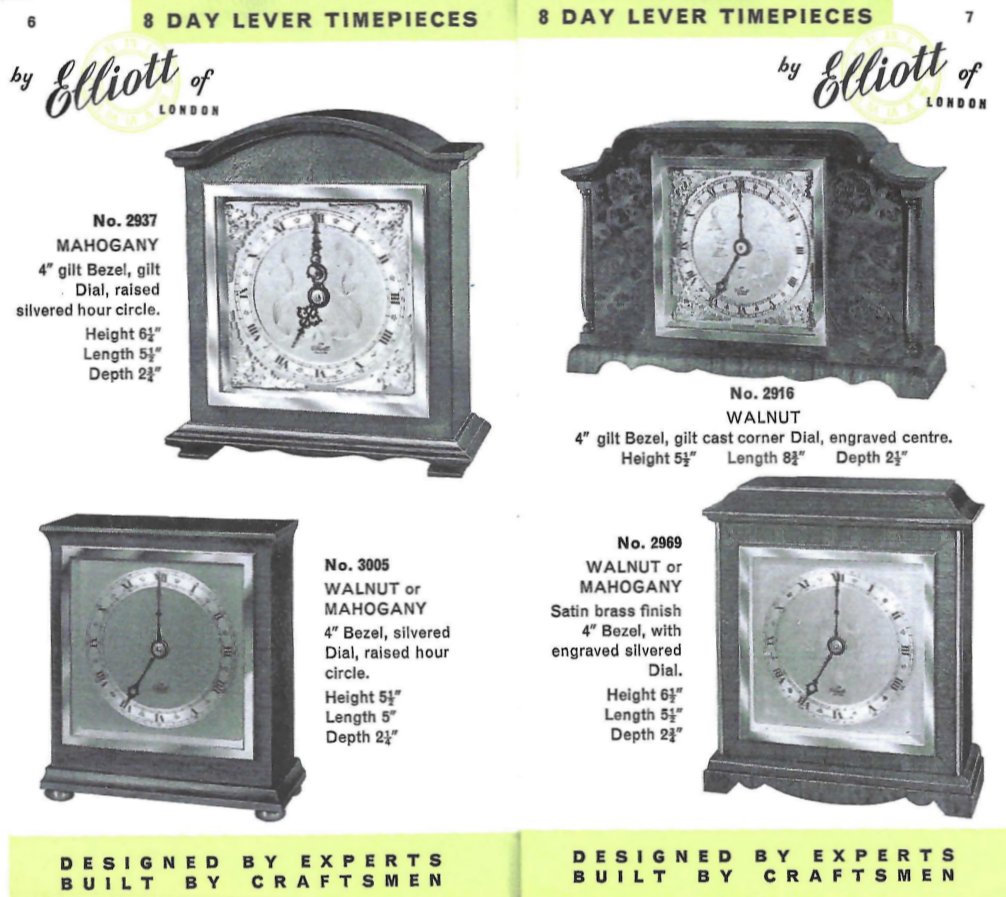

Elliott clocks 2937 2916 3005 2969

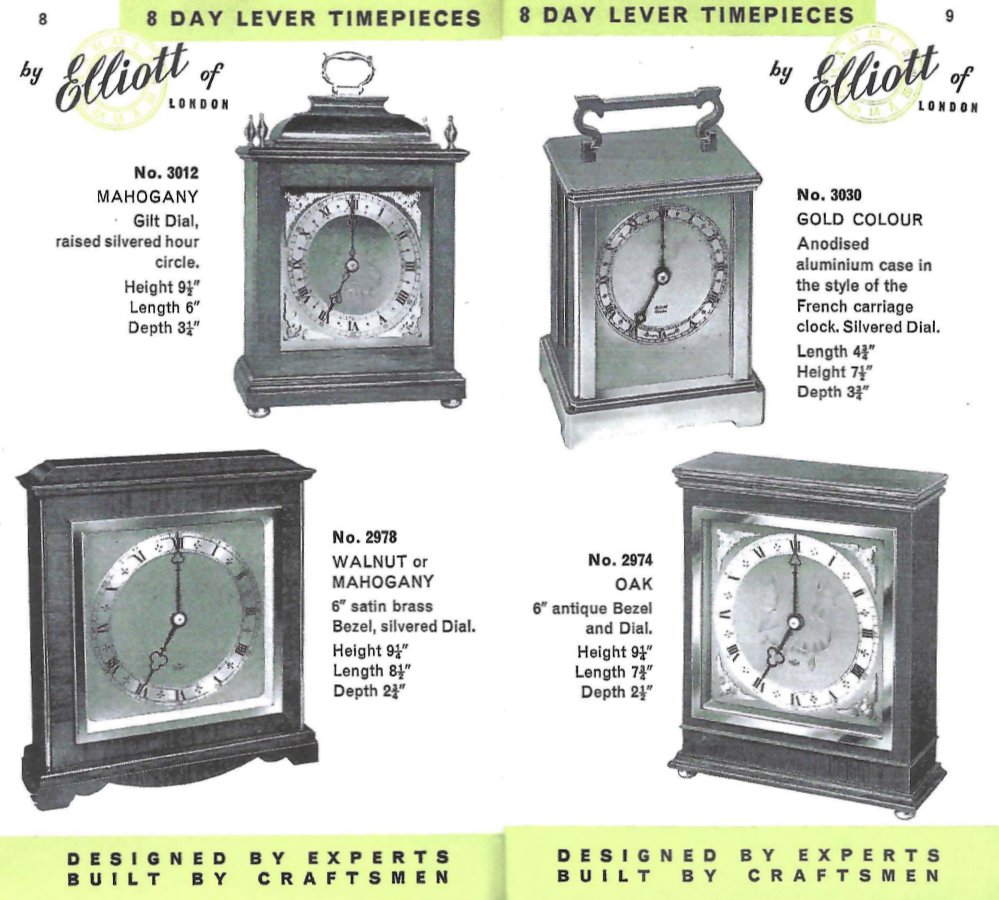

Elliott clocks 3012 3030 2978 2974

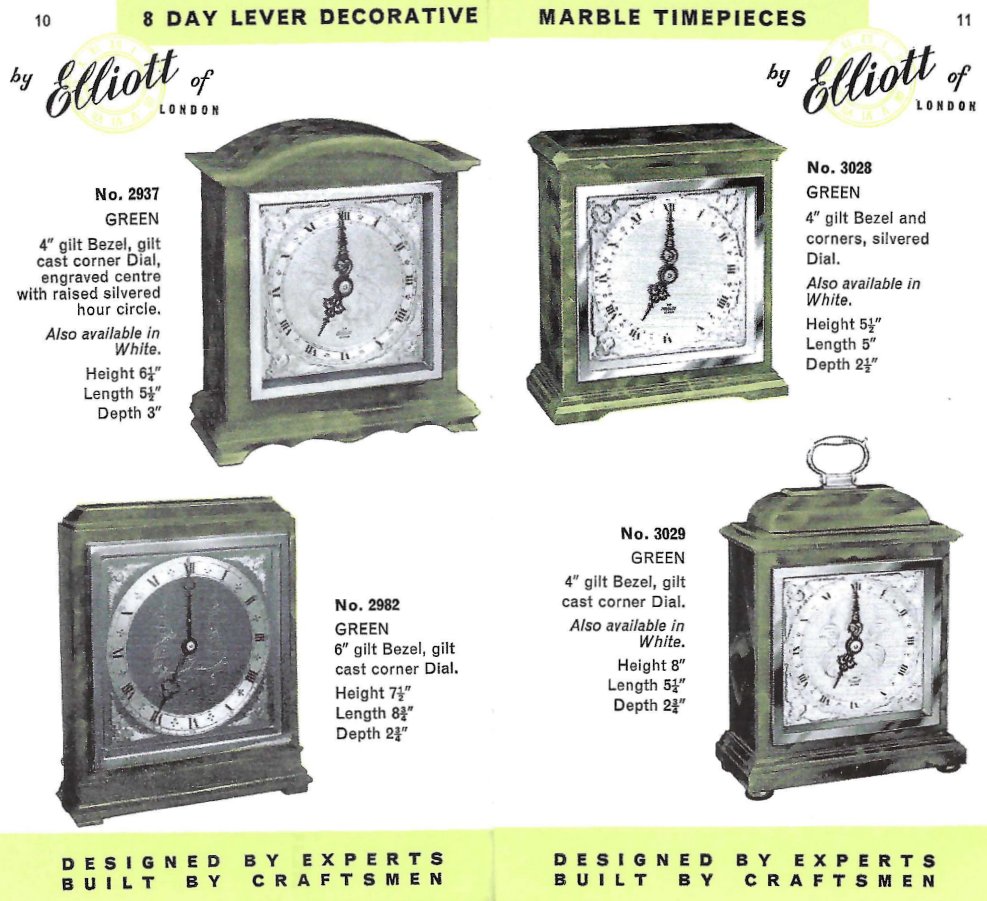

Elliott clocks 2937 3028 2982 3029

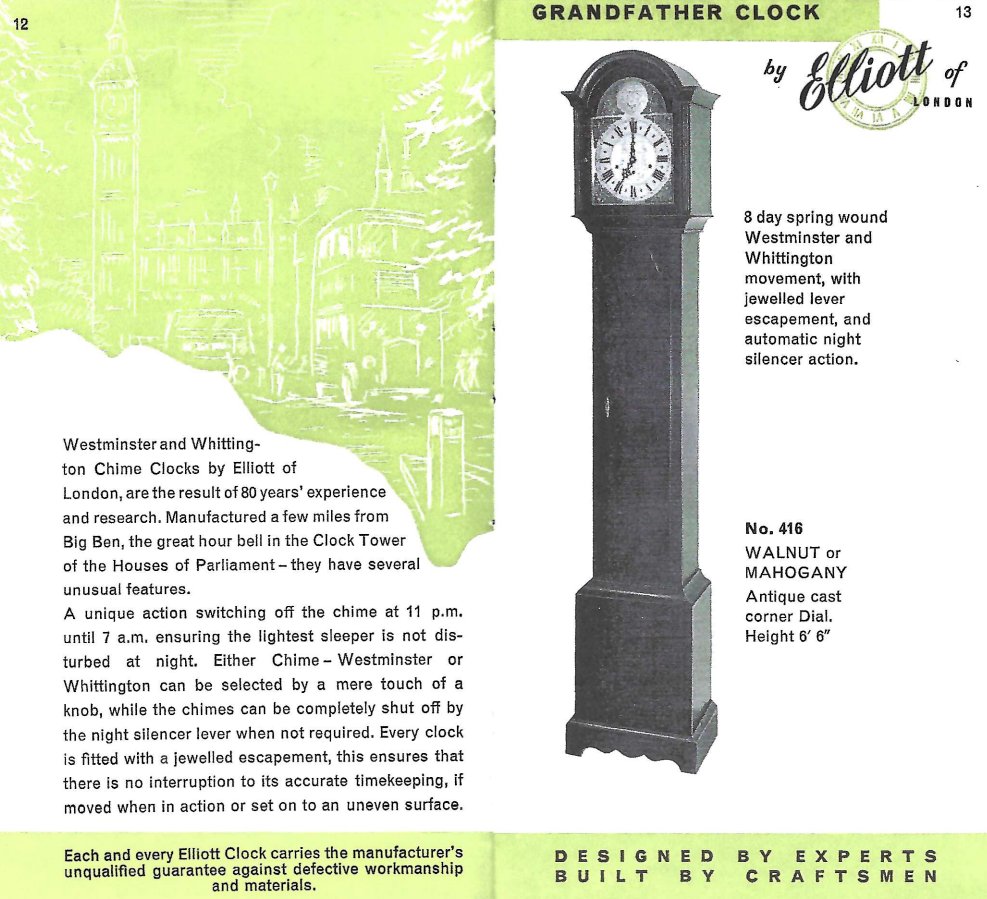

Elliott clock 416

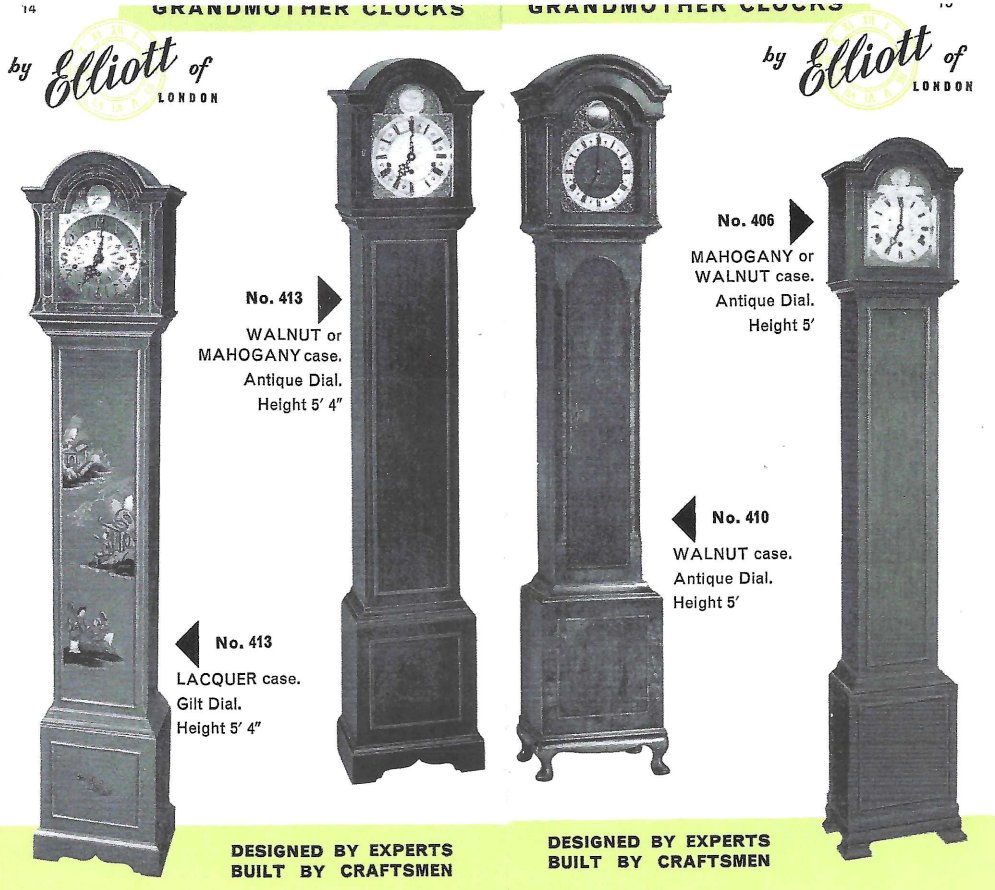

Elliott clocks 413 410 406

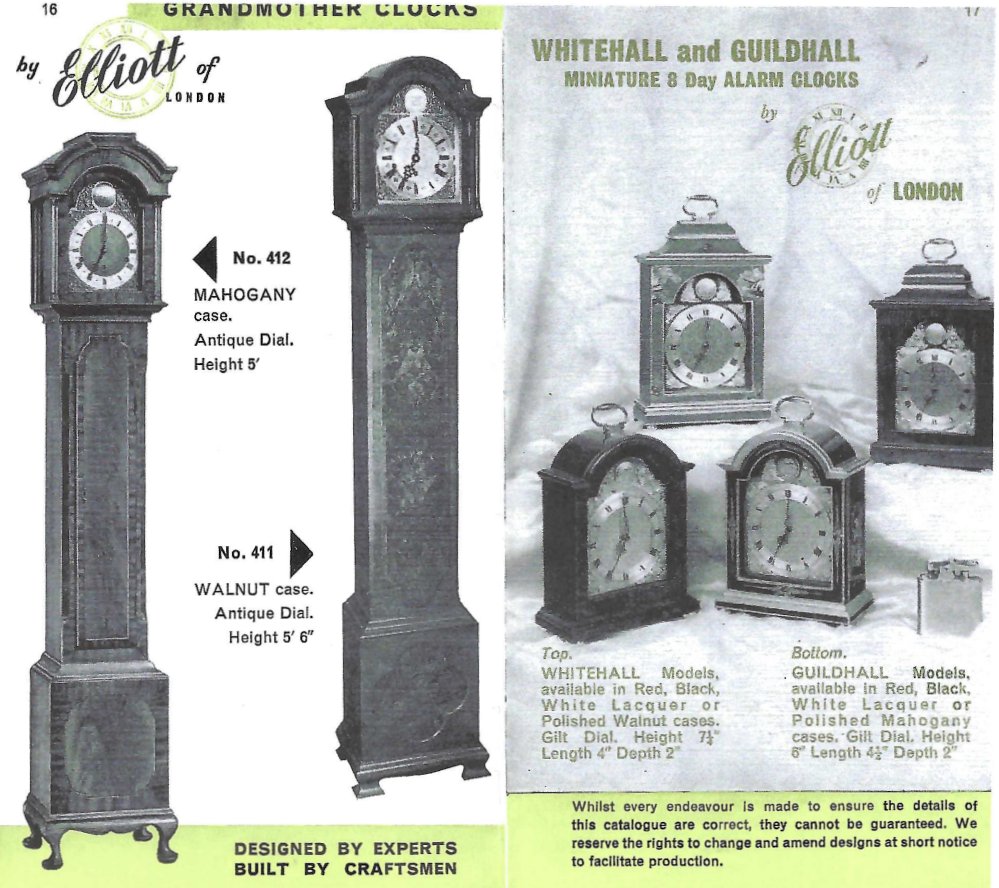

Elliott clocks 412 411

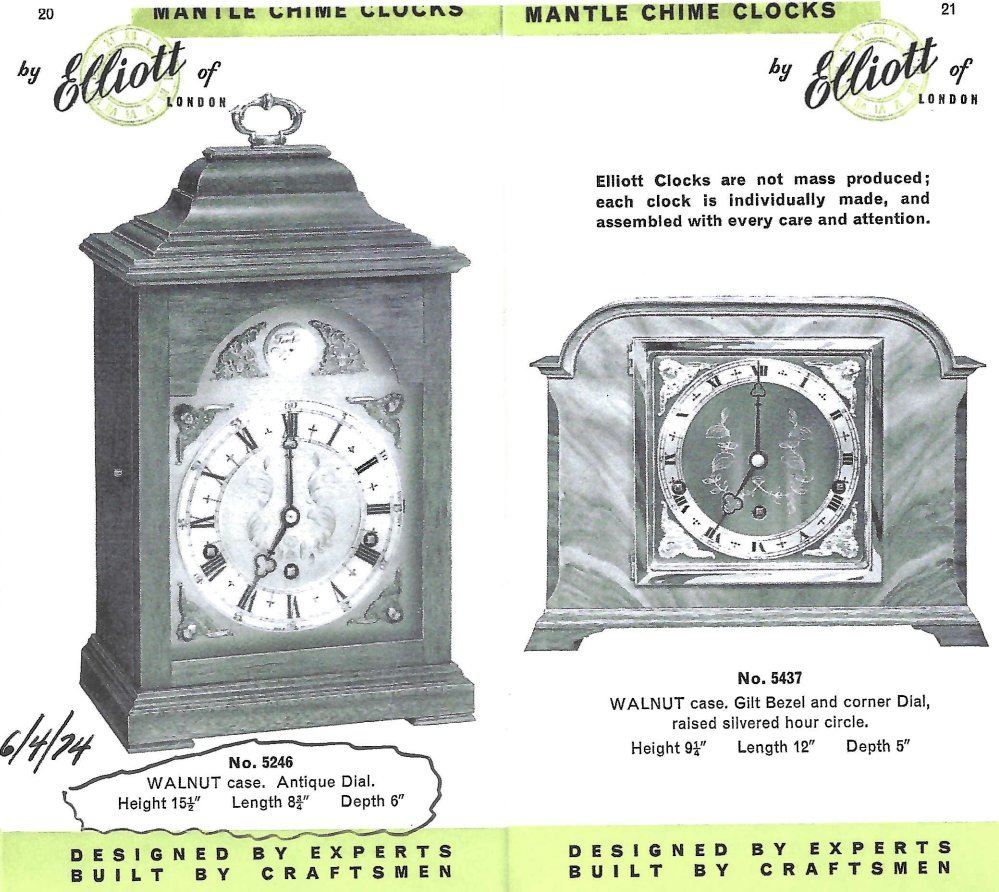

Elliott clocks 5246 5437

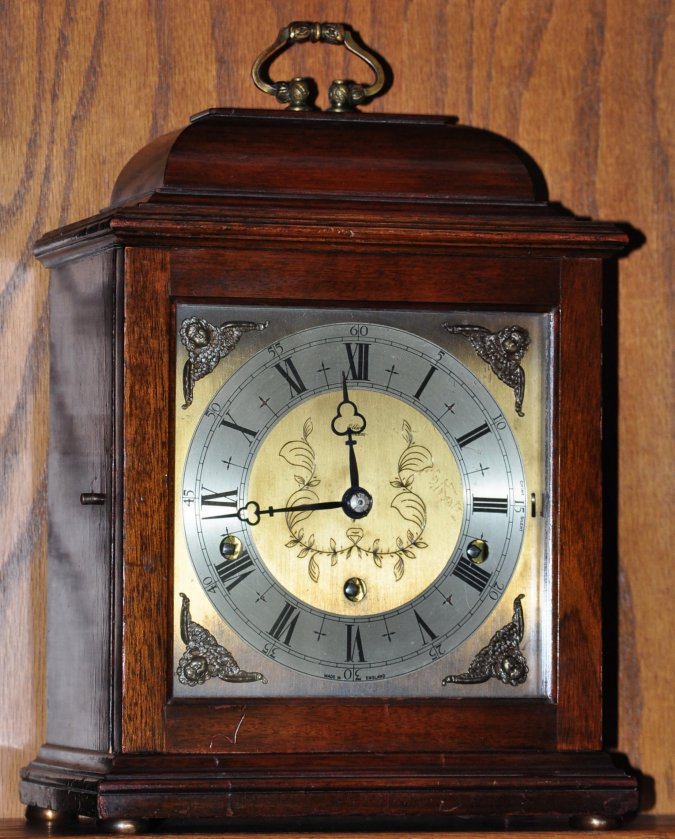

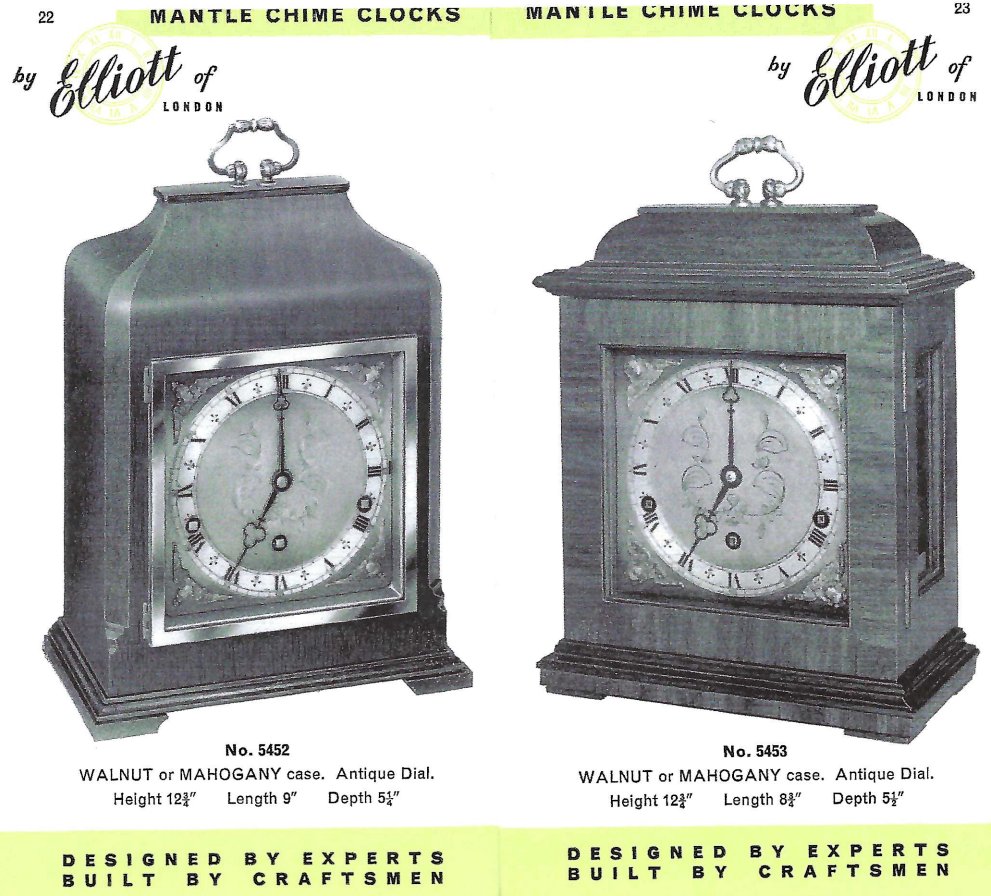

Elliott clocks 5452 5453

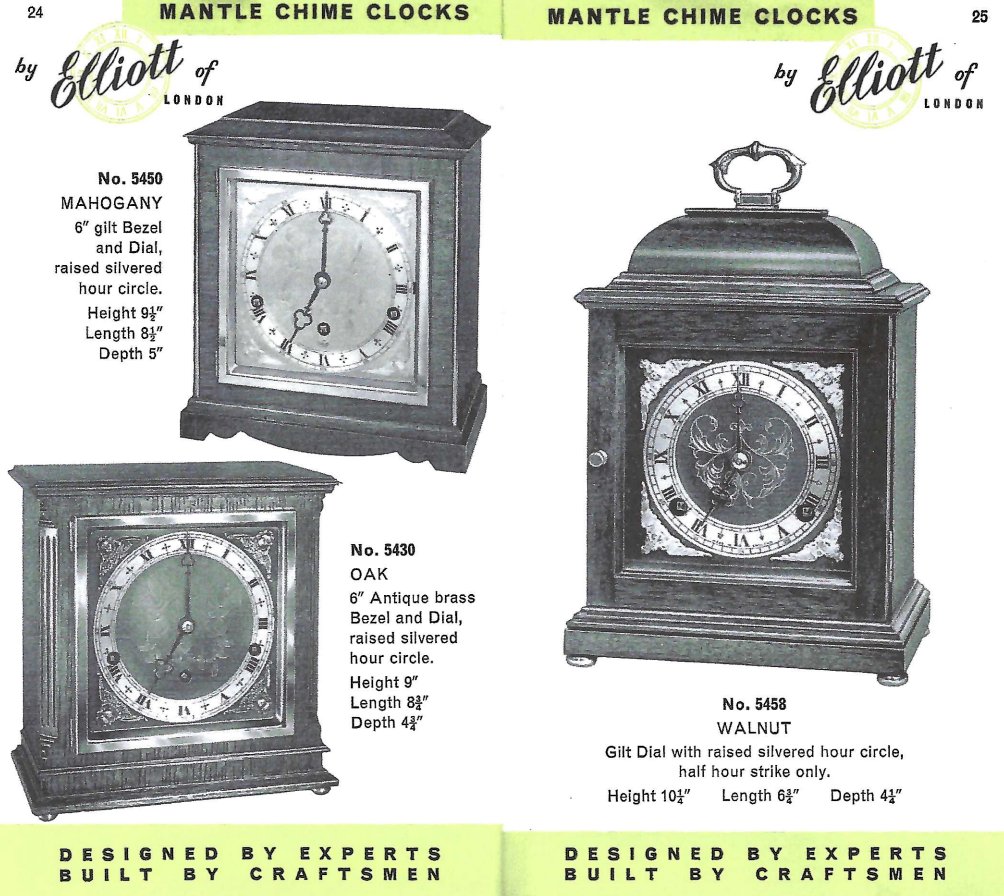

Elliott clocks 5450 5430 5458

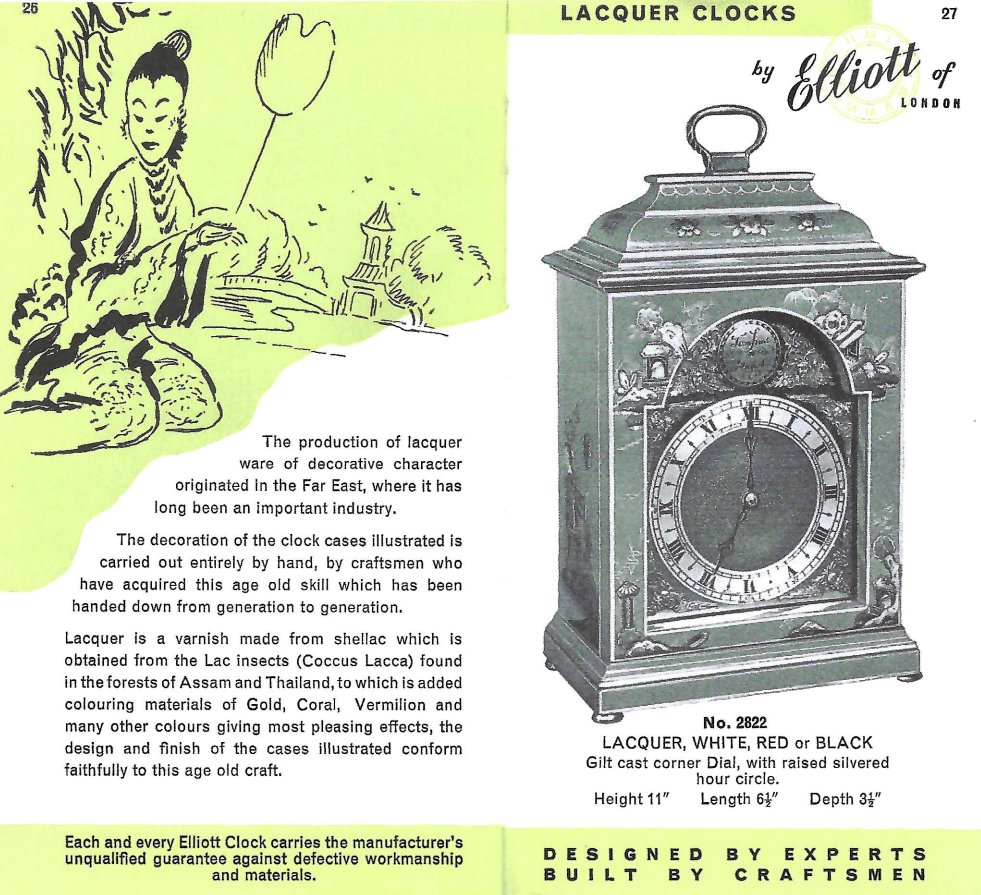

Elliott clock 2822

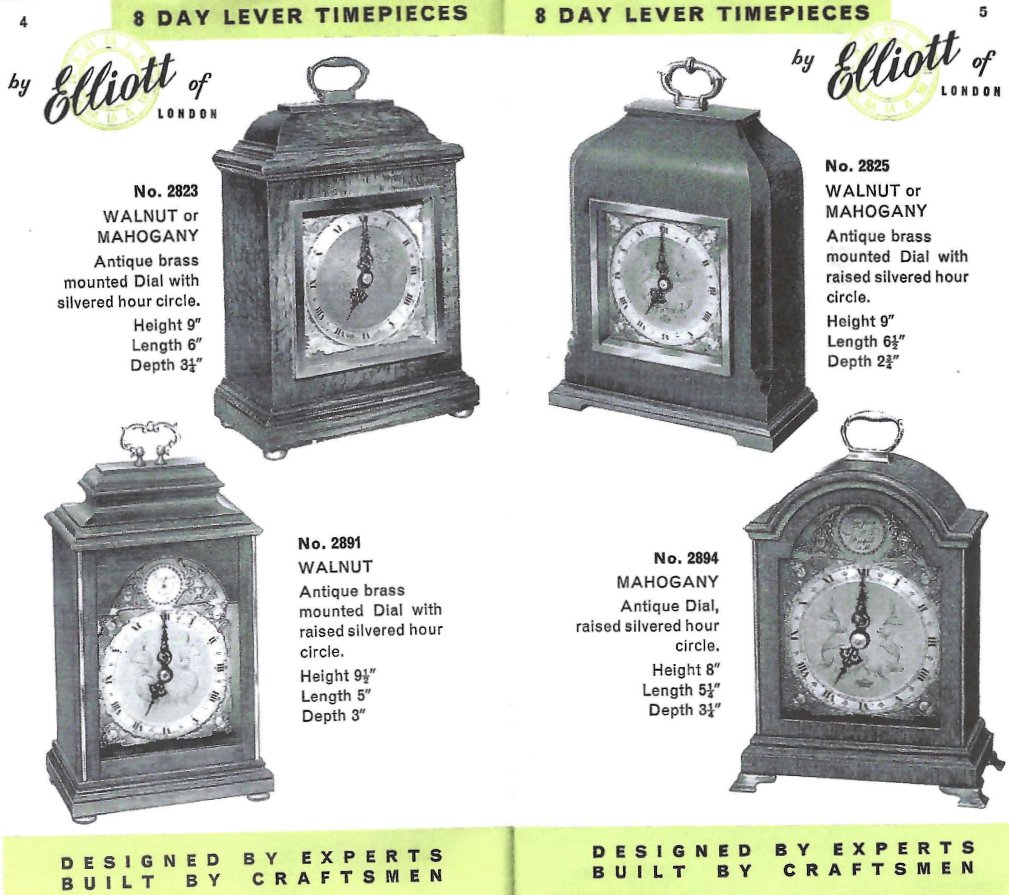

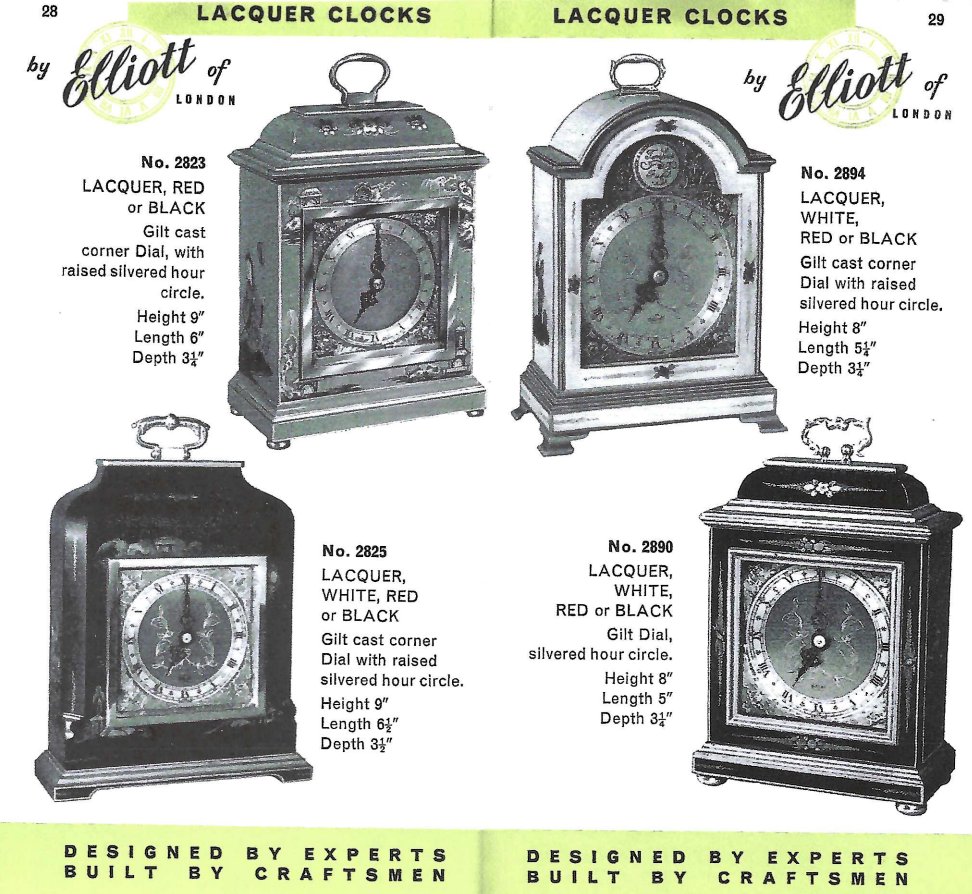

Elliott clocks 2823 2825 2894 2890

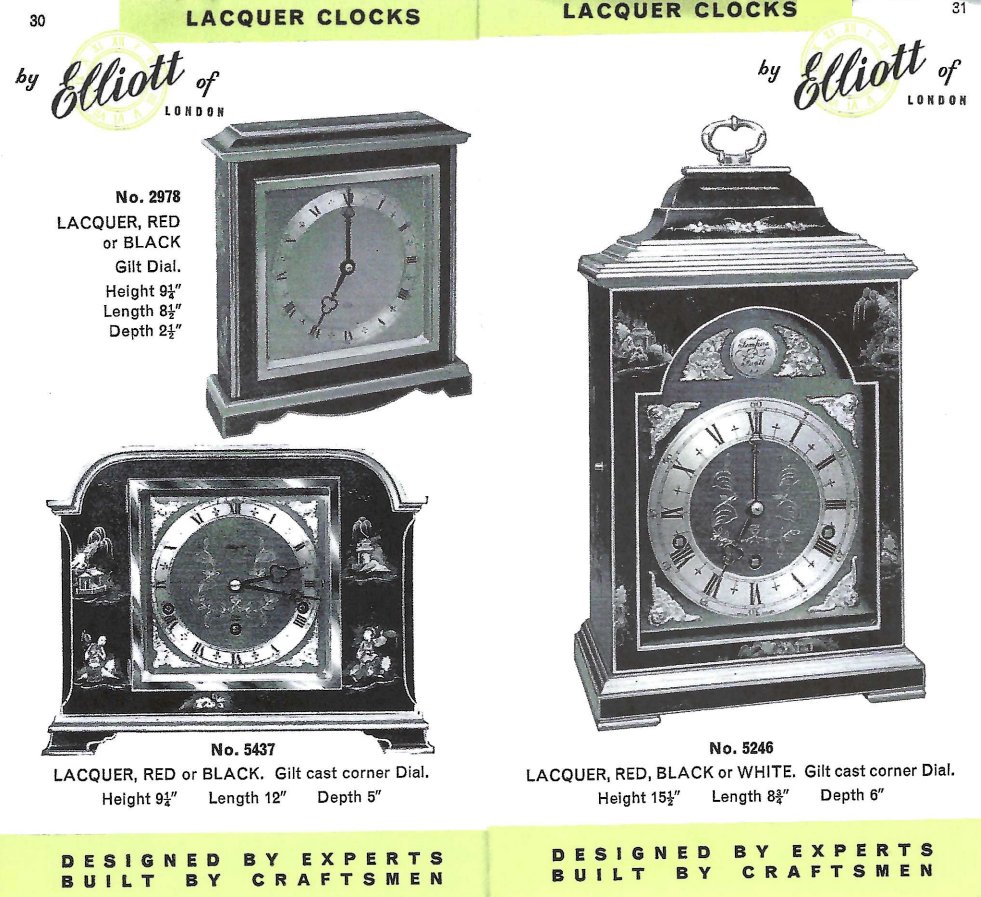

Elliott clocks 2978 5437 5246

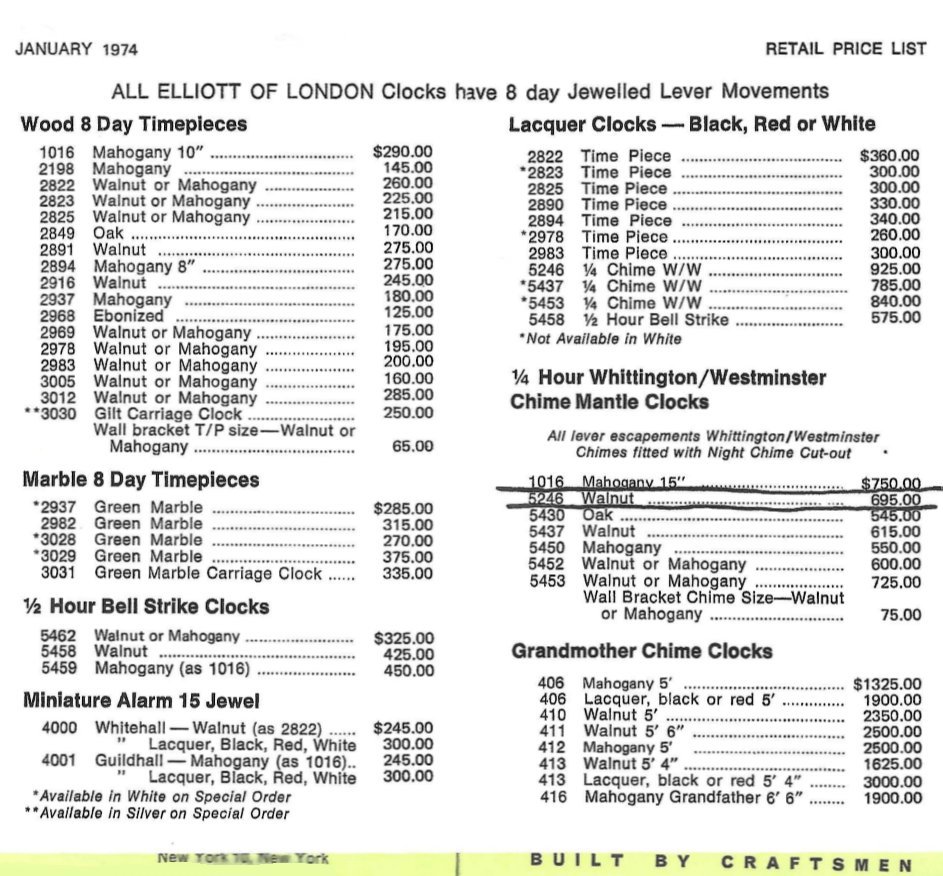

Elliott clocks 1974 price list


I would like to thank Ben Fulghum for sharing this catalogue.

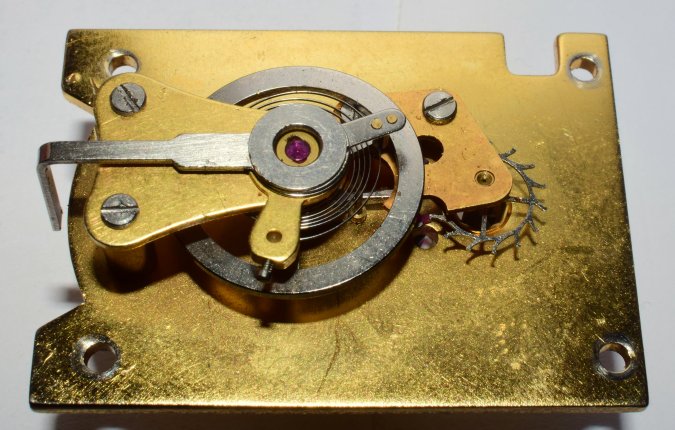

Here is an 11 jewel French l'Épée escapement platform, made for Elliott clocks. This was the best available at the time, in the late 1960s and early 70s. Click on the photos to see enlargements.



Elliott clock escapement platform

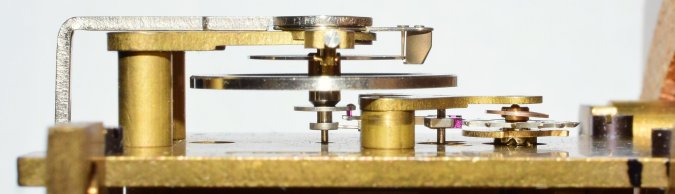

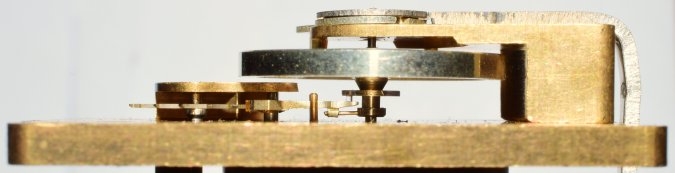

Elliott clock escapement platform side view

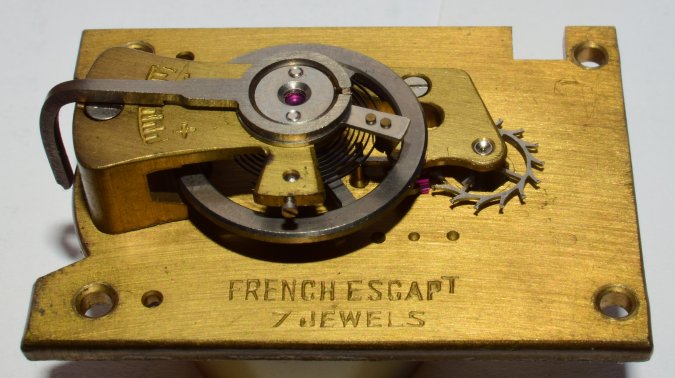

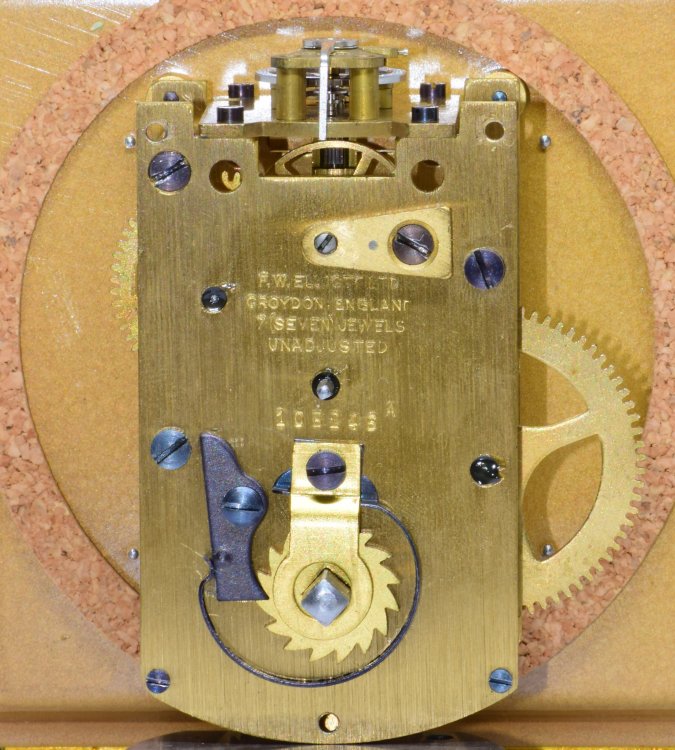

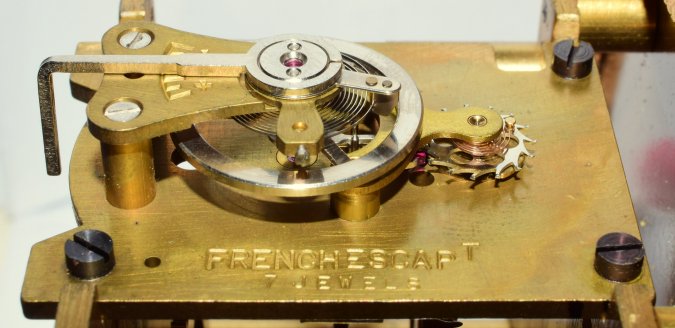

The most commonly used platform was the 7 jewel l'Épée platform, like this one from the late 1960s. Elliott clocks with this platform keep very accurate time.



Elliott clock escapement platform 7 jewels


This 7 jewel l'Épée platform is from about 1980.



Elliott clock escapement platform 1980


Here is a Smiths ABEC platform from around 1950. These were used in Elliott clocks when they could not get enough l'Épée escapements, and are probably quite scarce.



Smiths ABEC clock escapement platform 1950


Smiths ABEC clock escapement platform 1950 side view

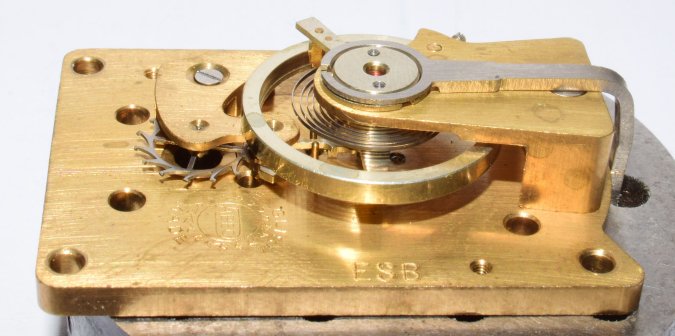

The last platform is from the 1980s, a l'Épée with a hairspring on the escape wheel, acting somewhat like a buffer to make the ticking much quieter, and is probably also quite scarce.



Elliott clock escapement platform 1980s


Elliott clock escapement platform 1980s

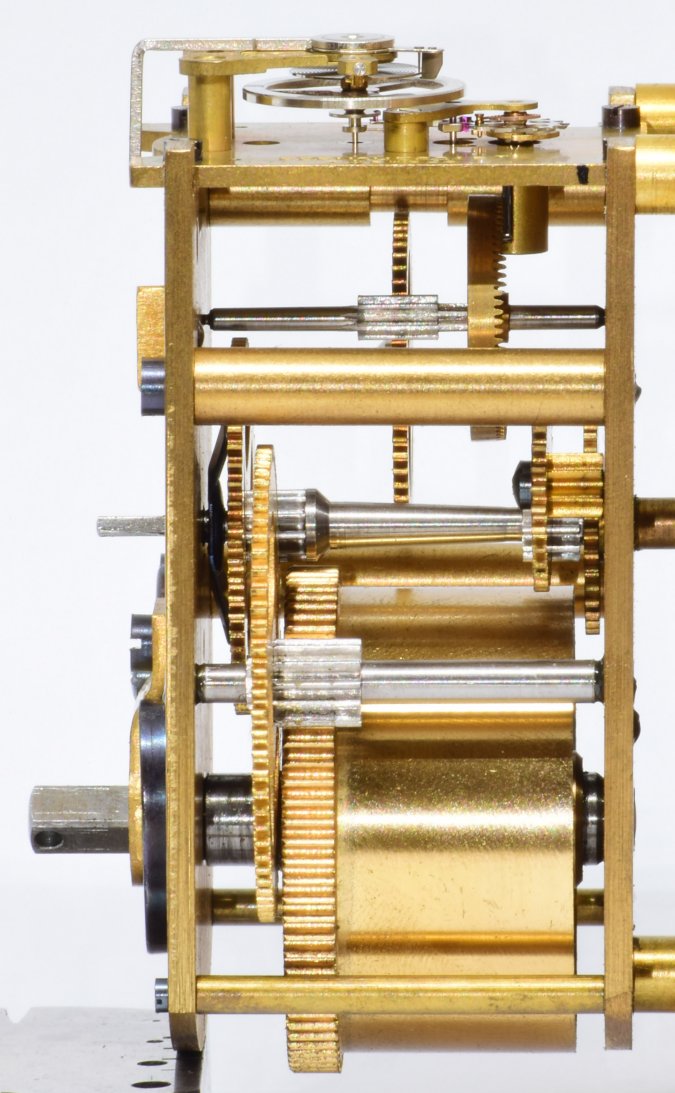

The last platform is mounted onto a movement that provides time only, which are more common than the chiming clocks, because the chiming clocks were even more expensive.



Elliott clock mechanism 1980s

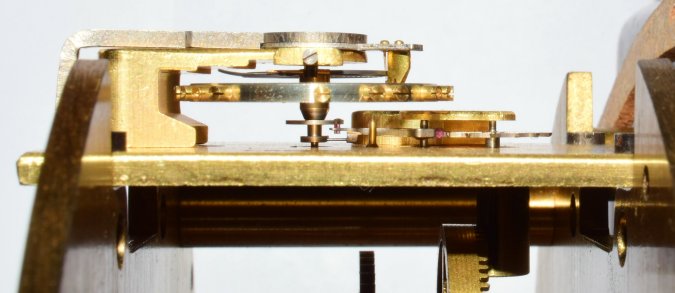

Elliott clock mechanism 1980s side view showing gears

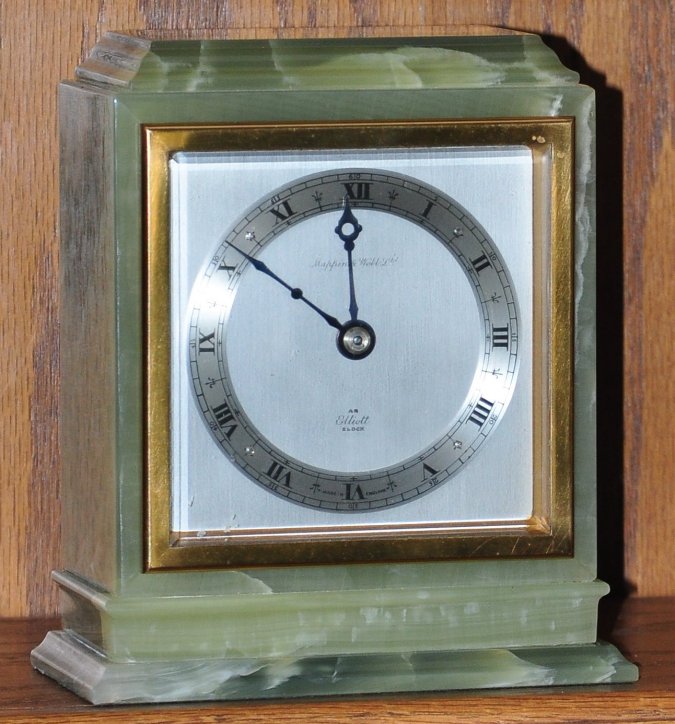

The case is heavy, made of green onyx stone in Belgium.



Elliott clock 1980s green onyx case


The original movement in the Elliott clock below, from the 1950s, was badly damaged, so this is a replacement movement with the hammer assembly and several other parts taken from the original movement. Otherwise, this movement looks like a typical Elliott chiming clock with two chimes, Westminster and Whittington. The original dust cover over the escapement platform was missing, so this platform has a dust cover made from a business card.



Elliott dual chime clock mechanism 1950s


Elliott clock case 1950s

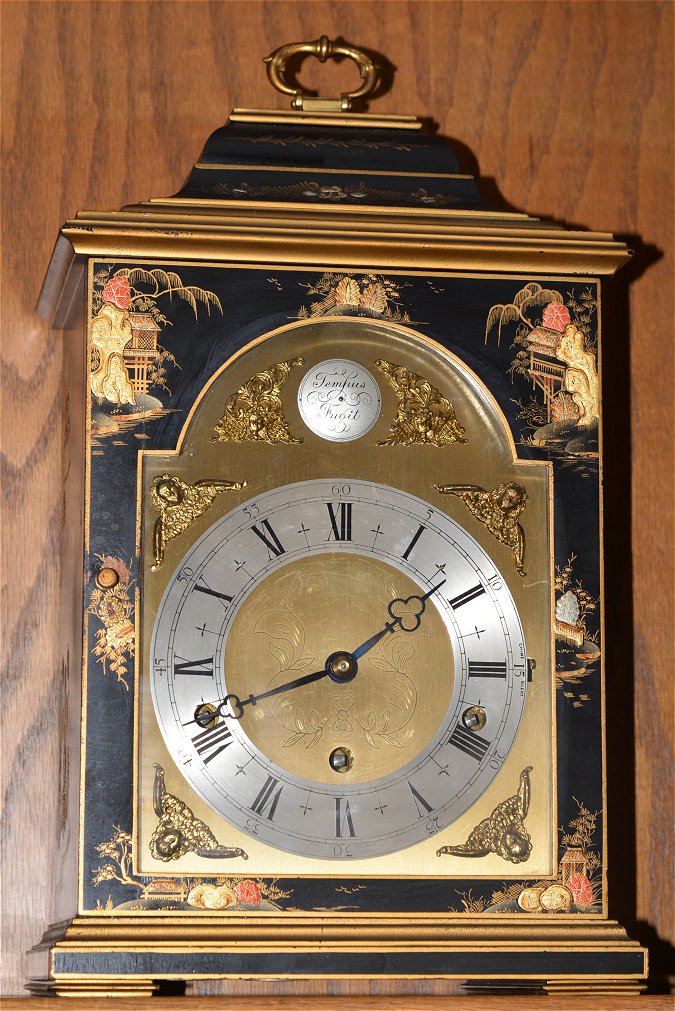

Finally, one of the most exciting finds in my collection, a 1974 Elliott with dual chimes and chinoiserie.



Elliott dual chime clock with chinoiserie from 1974
